Square End MillsTiSiN · nACo · Uncoated
Factory-direct solid carbide square end mills. Five coating and flute configurations for steel (HRC55), hardened steel (HRC65), and aluminium. Walter CNC grinding, Balzers PVD, ZOLLER inspection. MOQ 1 piece.
Walter CNC 5-Axis Grinding
Oerlikon Balzers Coatings
ZOLLER Inspection
5 Coating / Flute Variants
Ultra-Fine Grain Carbide
MOQ 1 Piece
Standard Size Range
Select Variant
HRC55 Steel

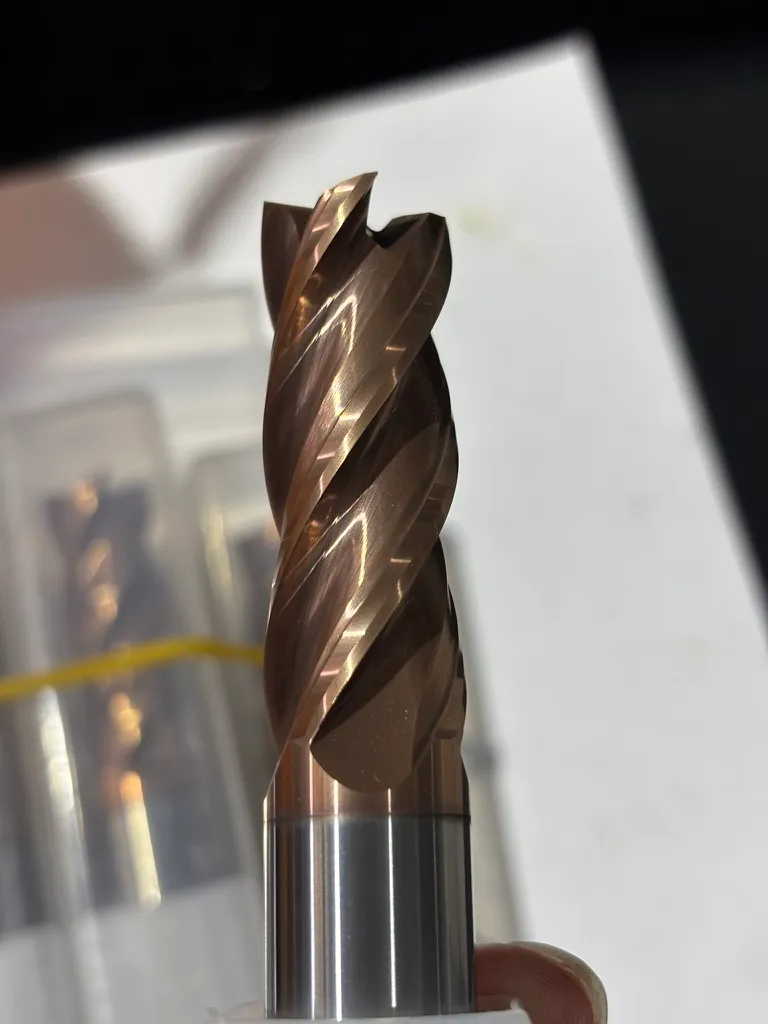

TiSiN · 4 Flute · HRC55
Production workhorse for steel, stainless, and cast iron up to HRC55
ISO PISO MISO K
4 flute TiSiN square end millcarbide end mill HRC55 steelsquare end mill stainless steel4 flute solid carbide end mill
Click any row to view the full SKU detail page with cutting parameters, applications, and quote request.
| CUTTER DIA (D1) h7 | FLUTE LENGTH (L2) | SHANK DIA (D2) h6 | OVERALL LENGTH (L1) | REACH | Est. price | |
|---|---|---|---|---|---|---|
| mm | mm | mm | mm | |||
| 1 | 3 | 4 | 50 | Standard | $4.37 | Details |
| 1.5 | 4 | 4 | 50 | Standard | $4.66 | Details |
| 2 | 6 | 4 | 50 | Standard | $4.95 | Details |
| 2.5 | 8 | 4 | 50 | Standard | $5.24 | Details |
| 3 | 8 | 4 | 50 | Standard | $5.53 | Details |
| 3.5 | 10 | 4 | 50 | Standard | $5.82 | Details |
| 4 | 10 | 4 | 50 | Standard | $6.11 | Details |
| 4 | 15 | 4 | 75 | Standard | $8.00 | Details |
| 4 | 20 | 4 | 100 | Standard | $9.90 | Details |
| 5 | 13 | 5 | 50 | Standard | $8.41 | Details |
| 6 | 15 | 6 | 50 | Standard | $11.02 | Details |
| 6 | 25 | 6 | 75 | Standard | $14.78 | Details |
| 6 | 30 | 6 | 100 | Standard | $18.55 | Details |
| 6 | 35 | 6 | 150 | Standard | $26.72 | Details |
| 7 | 20 | 8 | 60 | Standard | $19.09 | Details |
| 8 | 20 | 8 | 60 | Standard | $19.67 | Details |
| 8 | 25 | 8 | 75 | Standard | $23.43 | Details |
| 8 | 35 | 8 | 100 | Standard | $30.69 | Details |
| 8 | 50 | 8 | 150 | Standard | $46.04 | Details |
| 9 | 20 | 10 | 75 | Standard | $35.28 | Details |
| 10 | 25 | 10 | 75 | Standard | $35.28 | Details |
| 10 | 40 | 10 | 100 | Standard | $47.05 | Details |
| 10 | 55 | 10 | 150 | Standard | $70.57 | Details |
| 11 | 25 | 12 | 75 | Standard | $50.16 | Details |
| 12 | 30 | 12 | 75 | Standard | $50.16 | Details |
| 12 | 45 | 12 | 100 | Standard | $66.88 | Details |
| 12 | 60 | 12 | 150 | Standard | $100.32 | Details |
| 13 | 40 | 14 | 100 | Standard | $90.20 | Details |
| 14 | 35 | 14 | 80 | Standard | $72.16 | Details |
| 14 | 45 | 14 | 100 | Standard | $90.20 | Details |
| 14 | 65 | 14 | 150 | Standard | $135.29 | Details |
| 14 | 60 | 14 | 200 | Standard | $180.39 | Details |
| 15 | 45 | 16 | 100 | Standard | $116.99 | Details |
| 16 | 45 | 16 | 100 | Standard | $116.99 | Details |
| 16 | 70 | 16 | 150 | Standard | $175.48 | Details |
| 18 | 45 | 18 | 100 | Standard | $147.26 | Details |
| 18 | 70 | 18 | 150 | Standard | $220.90 | Details |
| 20 | 45 | 20 | 100 | Standard | $181.02 | Details |
| 20 | 70 | 20 | 150 | Standard | $271.53 | Details |
All dimensions in mm. Custom diameters (0.1mm increment), special flute counts, and extended lengths available on request.
Manufacturing Standard
Precision on Every Axis
Walter CNC 5-Axis Grinding
Every tool precision-ground on Walter Ewag 5-axis centres. Corner geometry and flute profile held to ±0.003mm.
Oerlikon Balzers Coatings
TiSiN and nACo coatings applied via Swiss Balzers PVD process. Uniform coating thickness on all cutting edges.
ZOLLER Inspection
Diameter, runout, corner radius, and flute symmetry measured on ZOLLER Inspector before shipment.
5 Coating / Flute Variants

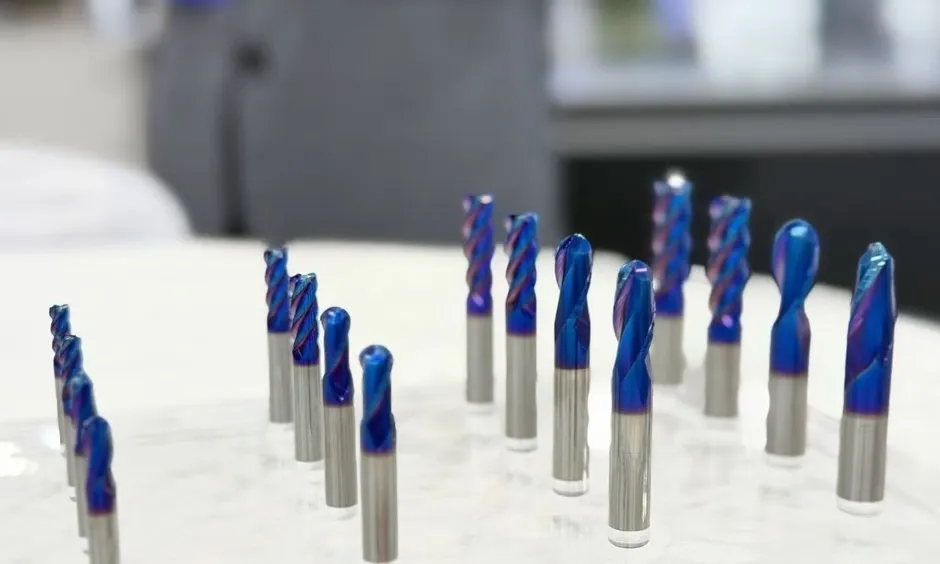

TiSiN 2F & 4F for steel · Uncoated 2F & 3F for aluminium · nACo 4F for HRC65 hardened steel.
Ultra-Fine Grain Carbide
10% cobalt binder, grain size < 0.5µm — highest fracture toughness at micro-diameters.
MOQ 1 Piece
No minimum order. Standard sizes ship 1–5 days. Custom diameters and lengths in 5–15 days.
Need a Custom Diameter, Helix, or Coating?
We manufacture to 0.1mm increment, custom helix angles (30°/35°/45°), AlCrN, DLC, or uncoated variants, and special OAL. Prototypes in 5–10 days.
