Watch on YouTubeSolid Carbide · 4 Variants · R0.5–10mm Ball Radius

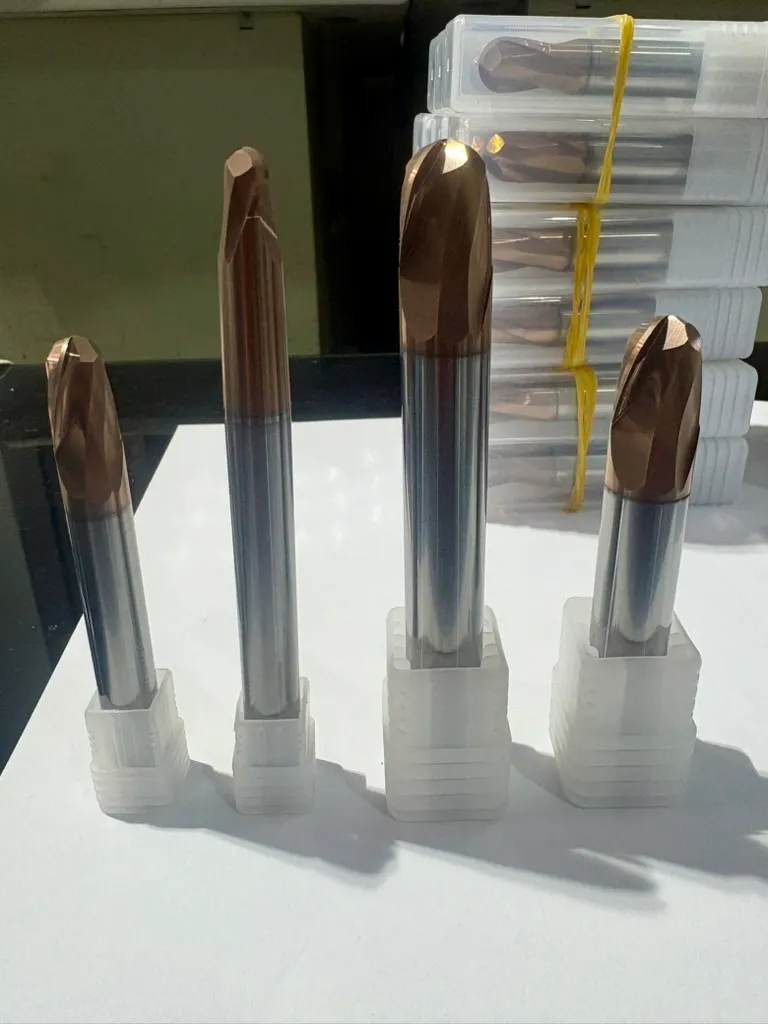

Ball Nose End MillsTiSiN · nACo · Uncoated
Factory-direct solid carbide ball nose end mills for 3D contouring, mould and die, and complex surface machining. Four coating and flute configurations for steel (HRC55), hardened steel (HRC65), aluminium, and graphite electrodes.
Walter CNC 5-Axis Grinding
Oerlikon Balzers PVD Coating
ZOLLER Radius Inspection
4 Coating / Flute Variants
Neck Relief for Deep Cavities
MOQ 1 Piece
Standard Size Range
Select Variant
HRC55 Steel
TiSiN · 2 Flute · HRC55
Large chip clearance for 3D contouring in steel up to HRC55
ISO PISO MISO K
Click any row to view full SKU detail with cutting parameters, scallop height guide, and quote request.
| CUTTER DIA (D1) h7 | BALL RADIUS (R) | FLUTE LENGTH (L2) | SHANK DIA (D2) h6 | OVERALL LENGTH (L1) | REACH | Est. price | |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | |||
| 1 | R0.5 | 3 | 4 | 50 | Standard | $4.37 | Details |
| 1.5 | R0.75 | 4 | 4 | 50 | Standard | $4.66 | Details |
| 2 | R1 | 6 | 4 | 50 | Standard | $4.95 | Details |
| 2.5 | R1.25 | 8 | 4 | 50 | Standard | $5.24 | Details |
| 3 | R1.5 | 8 | 4 | 50 | Standard | $5.53 | Details |
| 3.5 | R1.75 | 10 | 4 | 50 | Standard | $5.82 | Details |
| 4 | R2 | 10 | 4 | 50 | Standard | $6.11 | Details |
| 4 | R2 | 15 | 4 | 75 | Standard | $8.00 | Details |
| 4 | R2 | 20 | 4 | 100 | Standard | $9.90 | Details |
| 5 | R2.5 | 13 | 5 | 50 | Standard | $8.41 | Details |
| 6 | R3 | 15 | 6 | 50 | Standard | $11.02 | Details |
| 6 | R3 | 25 | 6 | 75 | Standard | $14.78 | Details |
| 6 | R3 | 30 | 6 | 100 | Standard | $18.55 | Details |
| 6 | R3 | 35 | 6 | 150 | Standard | $26.72 | Details |
| 7 | R3.5 | 20 | 8 | 60 | Standard | $19.09 | Details |
| 8 | R4 | 20 | 8 | 60 | Standard | $19.67 | Details |
| 8 | R4 | 25 | 8 | 75 | Standard | $23.43 | Details |
| 8 | R4 | 35 | 8 | 100 | Standard | $30.69 | Details |
| 8 | R4 | 50 | 8 | 150 | Standard | $46.04 | Details |
| 9 | R4.5 | 20 | 10 | 75 | Standard | $35.28 | Details |
| 10 | R5 | 25 | 10 | 75 | Standard | $35.28 | Details |
| 10 | R5 | 40 | 10 | 100 | Standard | $47.05 | Details |
| 10 | R5 | 55 | 10 | 150 | Standard | $70.57 | Details |
| 11 | R5.5 | 25 | 12 | 75 | Standard | $50.16 | Details |
| 12 | R6 | 30 | 12 | 75 | Standard | $50.16 | Details |
| 12 | R6 | 45 | 12 | 100 | Standard | $66.88 | Details |
| 12 | R6 | 60 | 12 | 150 | Standard | $100.32 | Details |
| 13 | R6.5 | 40 | 14 | 100 | Standard | $90.20 | Details |
| 14 | R7 | 35 | 14 | 80 | Standard | $72.16 | Details |
| 14 | R7 | 45 | 14 | 100 | Standard | $90.20 | Details |
| 14 | R7 | 65 | 14 | 150 | Standard | $135.29 | Details |
| 14 | R7 | 60 | 14 | 200 | Standard | $180.39 | Details |
| 15 | R7.5 | 45 | 16 | 100 | Standard | $116.99 | Details |
| 16 | R8 | 45 | 16 | 100 | Standard | $116.99 | Details |
| 16 | R8 | 70 | 16 | 150 | Standard | $175.48 | Details |
| 18 | R9 | 45 | 18 | 100 | Standard | $147.26 | Details |
| 18 | R9 | 70 | 18 | 150 | Standard | $220.90 | Details |
| 20 | R10 | 45 | 20 | 100 | Standard | $181.02 | Details |
| 20 | R10 | 70 | 20 | 150 | Standard | $271.53 | Details |
All dimensions in mm. Custom ball radii, neck lengths, and coatings available on request.
Manufacturing Standard
Ball-End Precision You Can Measure
Walter CNC 5-Axis Grinding
Ball radius held to ±0.003mm. Symmetric flute profile ensures equal chip load on all cutting edges throughout 3D tool paths.
Oerlikon Balzers PVD Coating
Uniform TiSiN and nACo coating on curved ball-end geometry. Zero coating built-up at ball-tip junction.
ZOLLER Radius Inspection
Ball radius, flute symmetry, and runout verified on ZOLLER Inspector before shipment. Certificate available on request.
4 Coating / Flute Variants
TiSiN 2F & 4F for steel · Uncoated 2F for aluminium & graphite · nACo 2F for HRC65 hardened steel.
Neck Relief for Deep Cavities
Neck diameter relief on long-reach variants reduces rubbing in deep mould cavities and eliminates tool deflection chatter.
MOQ 1 Piece
No minimum order. Standard sizes ship 1–5 days. Custom ball radii and lengths available in 5–15 days.
Need a Custom Ball Radius or Long-Neck Configuration?
We produce ball radii in 0.05mm increments, extended neck relief for deep-cavity access, and special coatings (AlCrN, DLC). Prototypes in 5–10 days.
